Description

Technical Specifications

Mechanical

DimensionsWithout mount: Ø82 x 88.3 mm (Ø3.2 x 3.5″)
With mount: Ø82 x 153 mm (Ø3.2 x 6″)

WeightWithout mount: 628 g (1.4 lb)
With mount: 765 g (1.7 lb)

Enclosure materialAluminum alloy, polycarbonate

Mounting materialWall mount: aluminum alloy
Pole mount: aluminum alloy

WeatherproofingIP65

ResistanceIK04

Optics

Sensor5MP CMOS

LensFixed focal length

View angleH: 84.7°, V: 46.2°, D: 99°

Night modeBuilt-in IR LED illumination and an IR cut filter

Video

Resolution4MP 2688 x 1512 (16:9)

Max. frame rate30 FPS

Image settingsBrightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz

System

ProcessorQuad-core Arm® Cortex®-A53 based chip

Networking interfaceGbE RJ45 port

Max. power consumption7.68W

Power methodPoE

Supported voltage range37—57V DC

LEDR/G/B/W ring

ButtonFactory reset

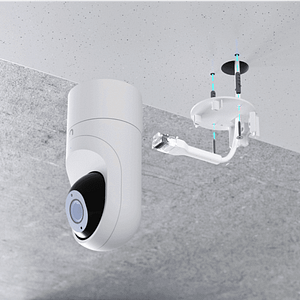

MountingWall, pole mount (Included)

Ambient operating temperature-20 to 40° C (-4 to 104° F)

Ambient operating humidity10 to 90% noncondensing

CertificationsFCC, IC, CE

Audio

MicrophoneYes (Can be disabled)

Software

Web applicationUniFi Protect: Version 1.20.0 and later

Mobile appUniFi Protect iOS™: Version 1.5.6 and laterUniFi Protect Android™: Version 1.4.7 and later
