Technical Specifications

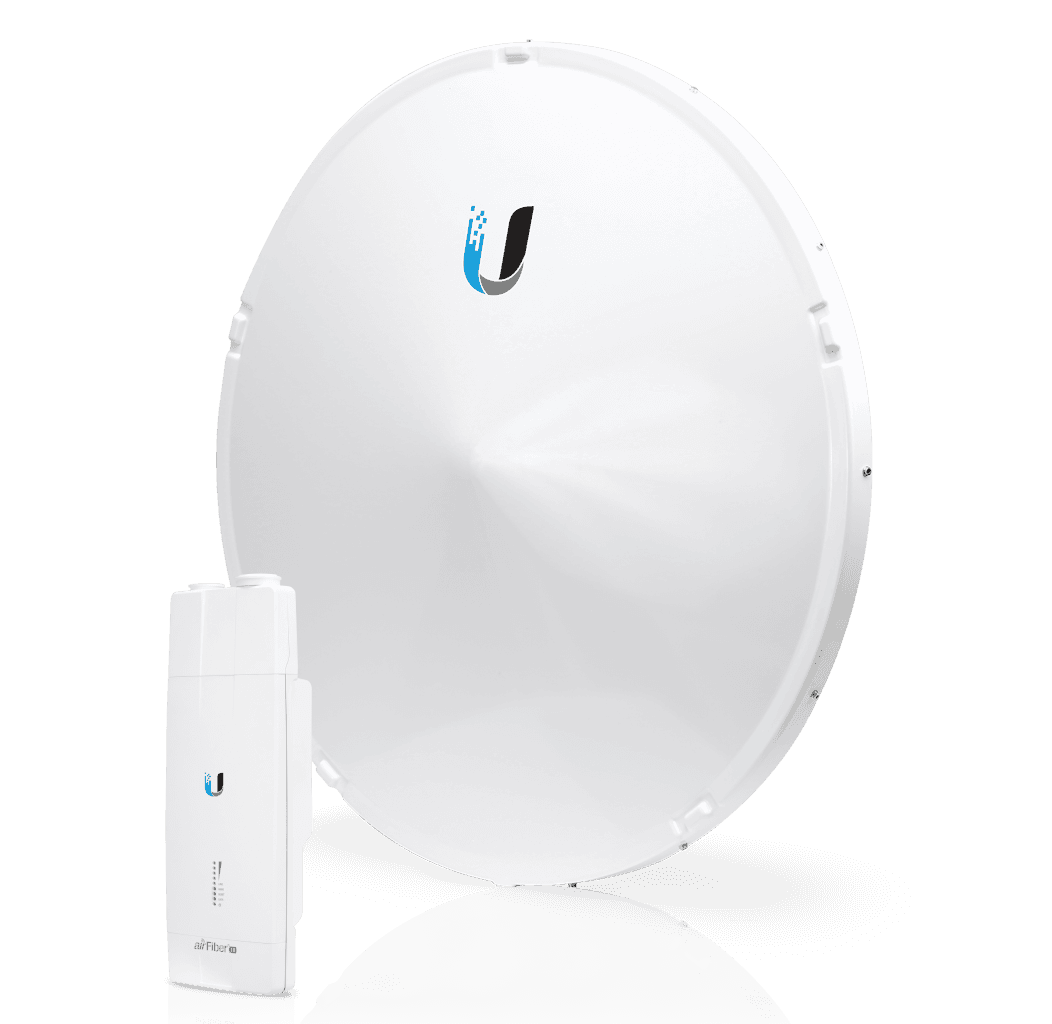

airFiber AF-11
Dimensions 327 x 112 x 86 mm (12.9 x 4.4 x 3.4″)
Weight 2.3 kg (5 lb)
Mounting AF-11G35 mount compatible
Hardware
Networking interface (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
Terminal block direct-wire
Power supply 50V DC, 1.2A gigabit PoE adapter (Included)
Supported voltage range 38-56V DC
Max. power consumption 36W
RF connectors (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
(2) N-Type Waterproof, One per Duplexer
Ambient operating temperature -40 to 55° C (-40 to 131° F)
Certifications CE, FCC, IC
Software
Modes SISO/MIMO*

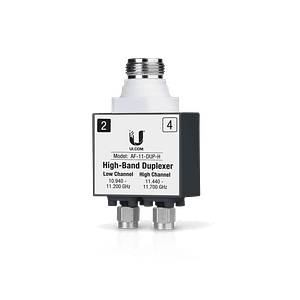

* Comes with (1) High-Band Duplexer pre-installed for SISO mode. For MIMO mode, a second Duplexer is available, model AF-11-DUP-H.
System
Max. throughput 1.2+ Gbps
Max. range 300+ km
Encryption 128-bit AES
RF
Operating frequency* 10.7-11.7 GHz
*Depends on regional regulations.
Max. conducted TX power* 30 dBm
*Depends on regional regulations.
Frequency accuracy ± 1 ppm
Channel bandwidth* 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable**
Programmable Uplink and Downlink duty cycles
* For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber
**Channel widths may vary according to country/region regulations.
airFiber AF‑11G35
Dimensions 811 x 811 x 460 mm (31.9 x 31.9 x 18.1″)
Weight Without mount: 7.14 kg (15.74 lb)
With mount: 11.85 kg (26.12 lb)
Wind loading 1538 N @ 200 km/h (346 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Mounting Pole mount
Frequency 10.3 to 11.7 GHz
Gain 35 dBi
HPOL beamwidth 2.5°
VPOL beamwidth 2.5°
Maximum VSWR 2:1
Polarization Default: H/V
After rotating OMT: ± 45°
Cross-pol isolation 35 dB
Pattern regulatory ETSI 302 217-4-2, Class 3, FCC Cat B
