Description

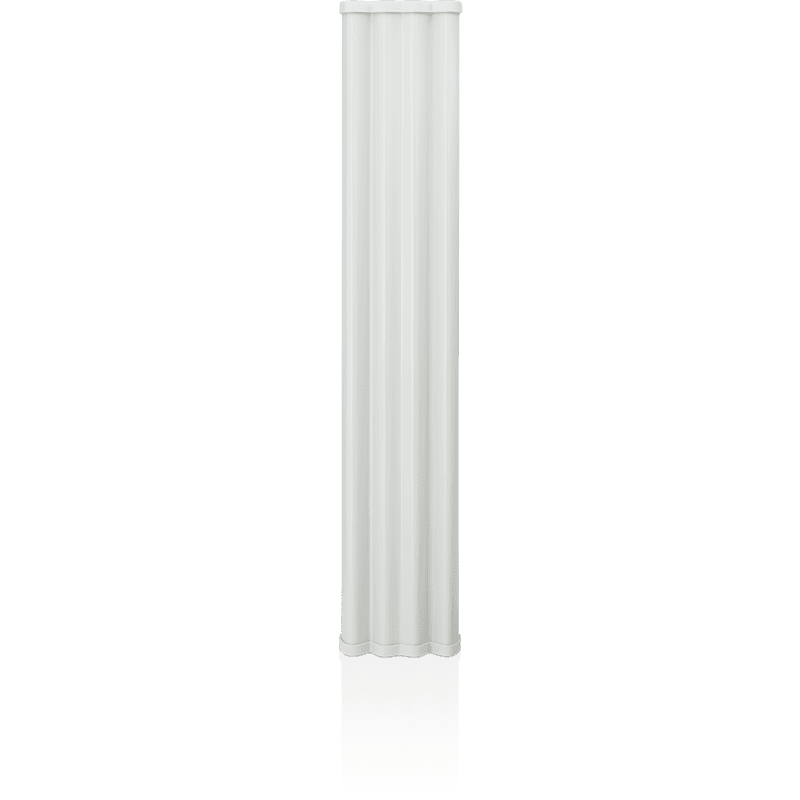

AM-5G19-120
Dimensions (mm) 700 x 135 x 73 mm (27.6 x 5.3 x 2.9″)
Weight 5.9 kg (13 lb)
Frequency Range 5.15 – 5.85 GHz
Gain 18.6 – 19.1 dBi
HPOL Beamwidth 123° (6 dB)
VPOL Beamwidth 123° (6 dB)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 89 N @ 160 km/h (20 lbf @ 100 mph)
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
AM-5G20-90
Dimensions 700 x 135 x 70 mm (27.6 x 5.3 x 2.8″)
Weight 5.9 kg (13 lb)
Frequency Range 5.15 – 5.85 GHz
Gain 19.4 – 20.3 dBi
HPOL Beamwidth 91° (6 dB)
VPOL Beamwidth 85° (6 dB)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 115 N @ 160 km/h (26 lbf @ 100 mph)
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
