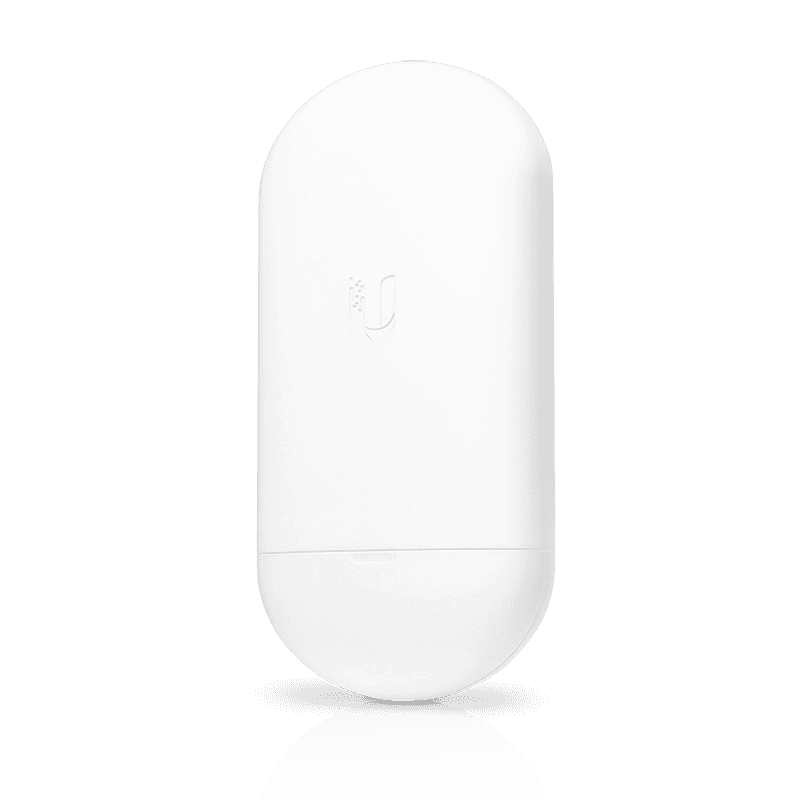

Description

Technical Specifications

Mechanical

Dimensions
179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3″)

Weight
180 g (6.4 oz)

Enclosure material
UV-stabilized plastic

MountingPole mounting kit (Included)

Hardware

Networking interface
(1) GbE RJ45 port

Power method
Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply
24V, 0.3A gigabit PoE supply (Not included)

Supported voltage range
22–27V DC

Max. power consumption
7W

LEDs
Power, Ethernet, (4) signal strength

Ambient operating temperature
-40 to 70° C (-40 to 158° F)

Ambient operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

System

Gain13 dBi

Channel bandwidths10/20/30/40/50/60/80 MHz

Cross-pol isolation20 dB min.

Max. VSWR1.8:1

Beamwidth45° (H-pol) / 45° (V-pol) / 45° (Elevation)

PolarizationDual linear

Operating Frequency (MHz)

Worldwide
5150-5875 MHz

USAU-NII-1U-NII-2AU-NII-2CU-NII-3
5150-5250 MHz5250-5350 MHz5240-5725 MHz5725-5850 MHz

Management Radio (MHz)

Worldwide
2412 – 2472 MHz

US/CA
2412 – 2462 MHz
