Technical Specifications

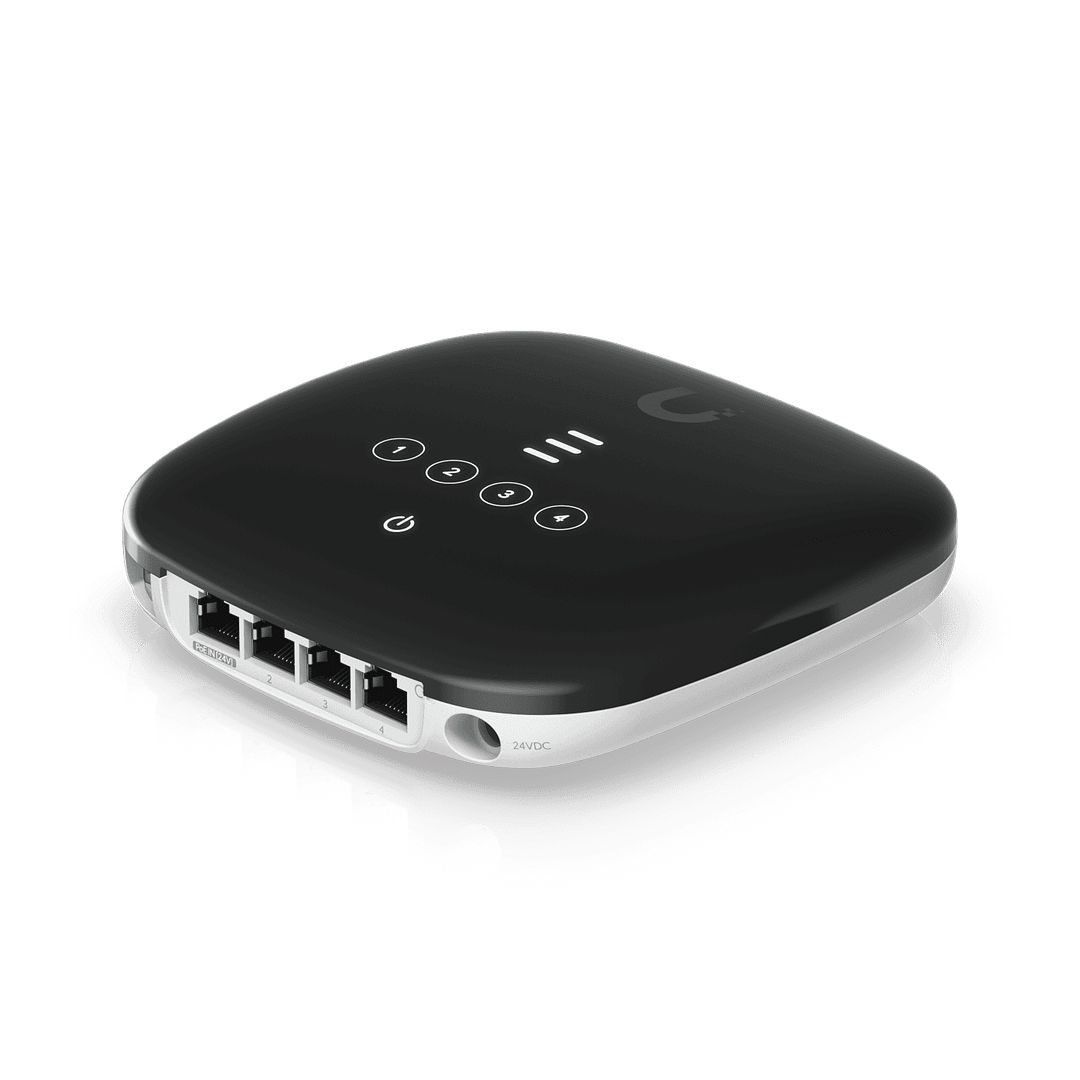

Mechanical

Dimensions126.3 x 126.1 x 31.7 mm (5 x 5 x 1.3″)

Weight190 g (6.7 oz)

Enclosure materialUV-stabilized polycarbonate (PC110U)

Hardware

Networking interface(1) SC/APC, ITU-G.984 GPON WAN port(4) GbE RJ45 LAN portsWiFi 802.11n

Management interfaceEthernet In-BandPON

Power methodDC Jack, 24V DC
24V Passive PoE (Pins 4, 5+; 7, 😎

Power supplyUniversal AC/DC adapter, 100—240V AC, 50/60 Hz, 24V/0.5A

Supported voltage range10–30V DC (passive PoE)5V DC (adapter)

Max. power consumption7W

Total non-blocking line rateDownstreamUpstream2.488 Gbps1.244 Gbps

Normal range of optical moduleTXRX1.5 to 5 dBm-8 to -28 dBm

Max. WiFi TX power2.4 GHz20 dBm

MIMO2.4 GHz2 x 2

Max. WiFi radio rate2.4 GHz300 Mbps

Antenna gain2.4 GHz1 dBi

Button(1) Factory reset

Ambient operating temperature-10 to 45° C (14 to 113° F)

Ambient operating humidity10 to 90% noncondensing

CertificationsFCC, IC, CE

LEDs

PON status(3) Signal LEDs
All-OFF: bootup
1x red: signal too low (< -28 db) 1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x red + 2x white: signal too strong (>= -8 db)
3x red: no signal
LEDs alternate between 3x red and a signal strength indicator: No authority

EthernetSteady white: link upBlinking white: activityOFF: link down

PowerWhite: ON

Software

ModeONU/ONT layer 2/3 Ethernet switch

ServicesWeb server, telnet, NAT, bridging and routing, firewall features, and application passthrough features

UtilitiesDashboard, monitoring, alarms, and logs

OtherRemote reset, remote reboot, remote firmware upgrade, VLAN support

SecurityGEM Port Encryption

Ubiquiti specific featuresUISP Mobile App

WiFi standards802.11 b/g/n

Wireless securityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)

Fiber

Operating wavelengthTXRX1310 nm 1490 nm

Line codeScrambled NRZ

Optical interface nominal bit rateDownstreamUpstream2488.32 Mbit/s1244.16 Mbit/s

Physical reach20 km

Supported Data Rates

802.11b1, 2, 5.5, 11 Mbps

802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
