Description

Technical Specifications

Mechanical

Dimensions
353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″)

Weight
152 g (5.4 oz)

Hardware

Networking interface
(1) GbE RJ45 port

Management interface
EthernetBluetooth

Power method
PoEPassive PoE, 24V (Pairs 4, 5+; 7, 8 return)

Power supply
Gigabit PoE adapter 24V, 0.5A**5-packs do not come with PoE adapters.

Supported voltage range
44—57V DC

Max. power consumption
8.5W

Max. TX power2.4 GHz5 GHz6 GHz
20 dBm20 dBm –

MIMO2.4 GHz5 GHz6 GHz
2 x 22 x 2 –

Throughput rate2.4 GHz5 GHz6 GHz
300 Mbps867 Mbps –

Antenna gain2.4 GHz5 GHz6 GHz
3 dBi4 dBi –

Button
Factory reset

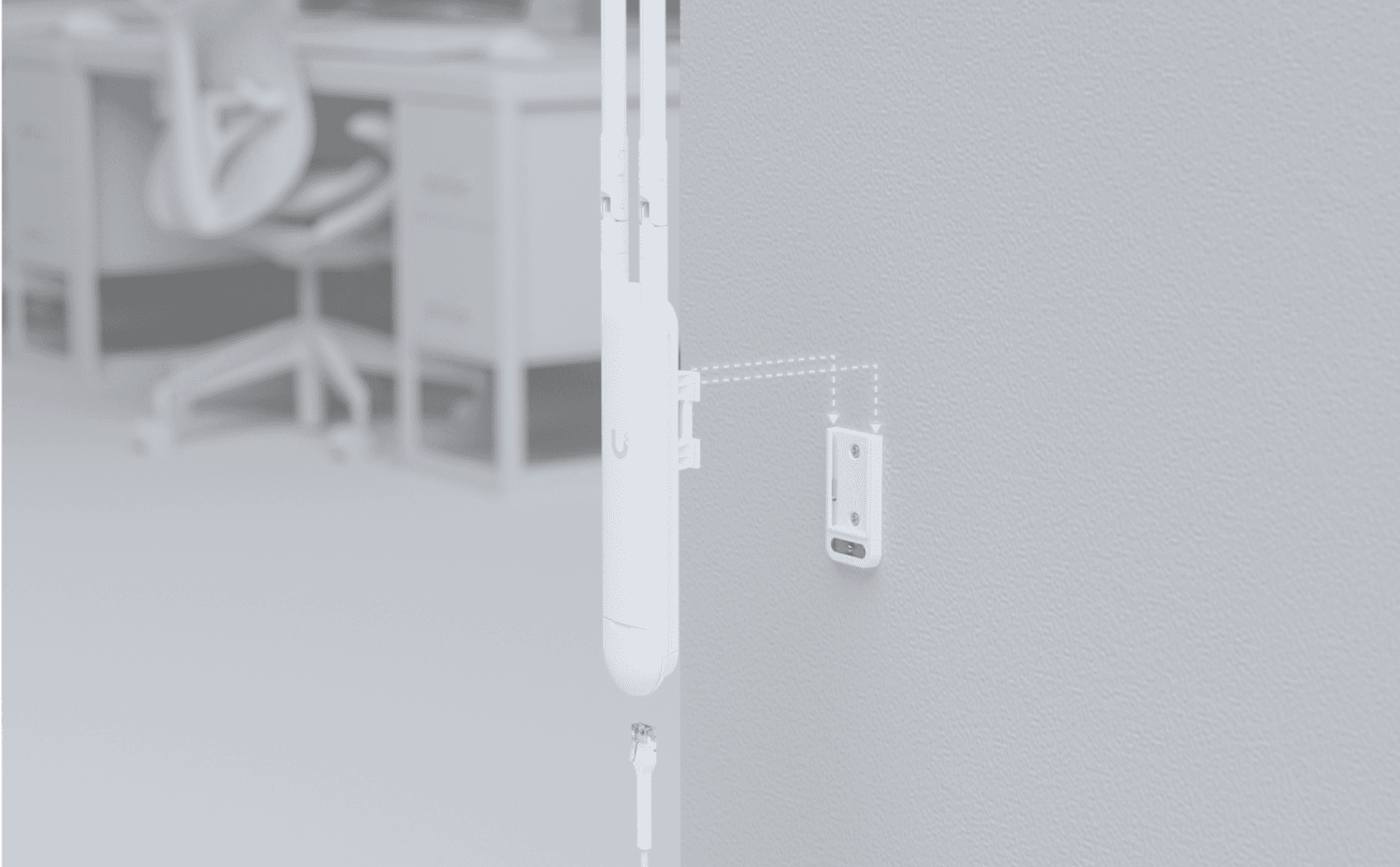

Mounting
Wall, pole, fast-mount (Included)

Ambient operating temperature
-30 to 70° C (-22 to 158° F)

Ambient operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC, UKCA

Software

WiFi standards
802.11a/b/g/n/ac

Wireless security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

VLAN
802.1Q

BSSID
Up to 4 per radio

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Power save
Supported

WMM
Voice, video, best effort, and background

Concurrent clients
250+

Supported Data Rates (Mbps)

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac
6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
