Technical Specifications

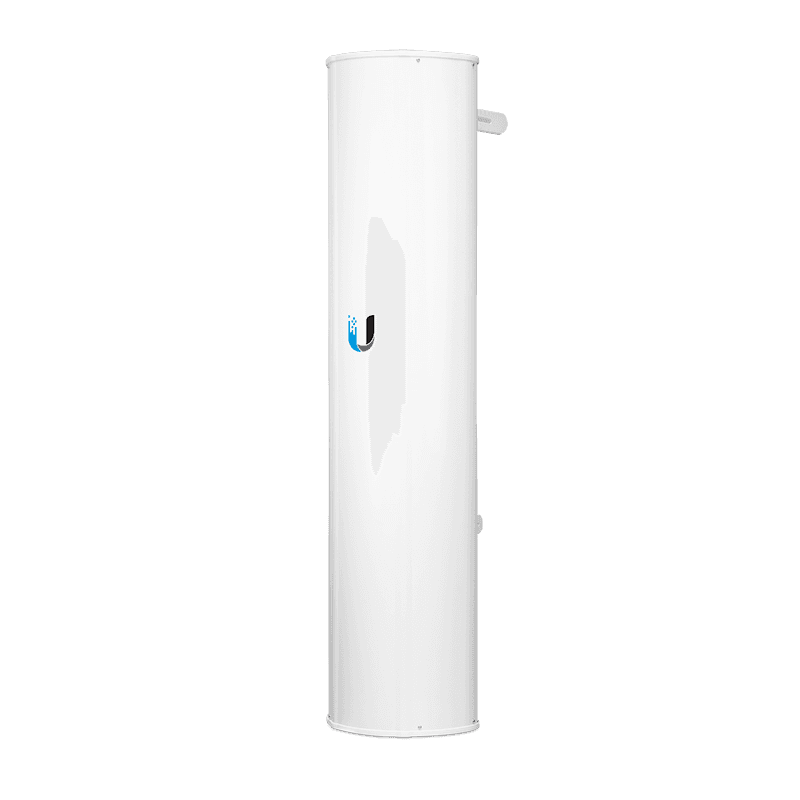

AP-5AC-90-HD
Dimensions With Mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18″)
Weight With Mount: 13.1 kg (28.9 lb)
Frequency Range 5.15 – 5.85 GHz
Gain 22 dBi
HPOL Beamwidth 3 x 30° (6 dB)
VPOL Beamwidth 3 x 30° (6 dB)
Elevation Beamwidth 8°
Electrical Downtilt 2°
Polarization Dual-Linear
Max. VSWR 1.75:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph)
Interfaces (6) RP-SMA Connectors (Weatherproof)
Compatible Radio Rocket5ac Prism
Mounting Pole Mount (Kit Included)
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
