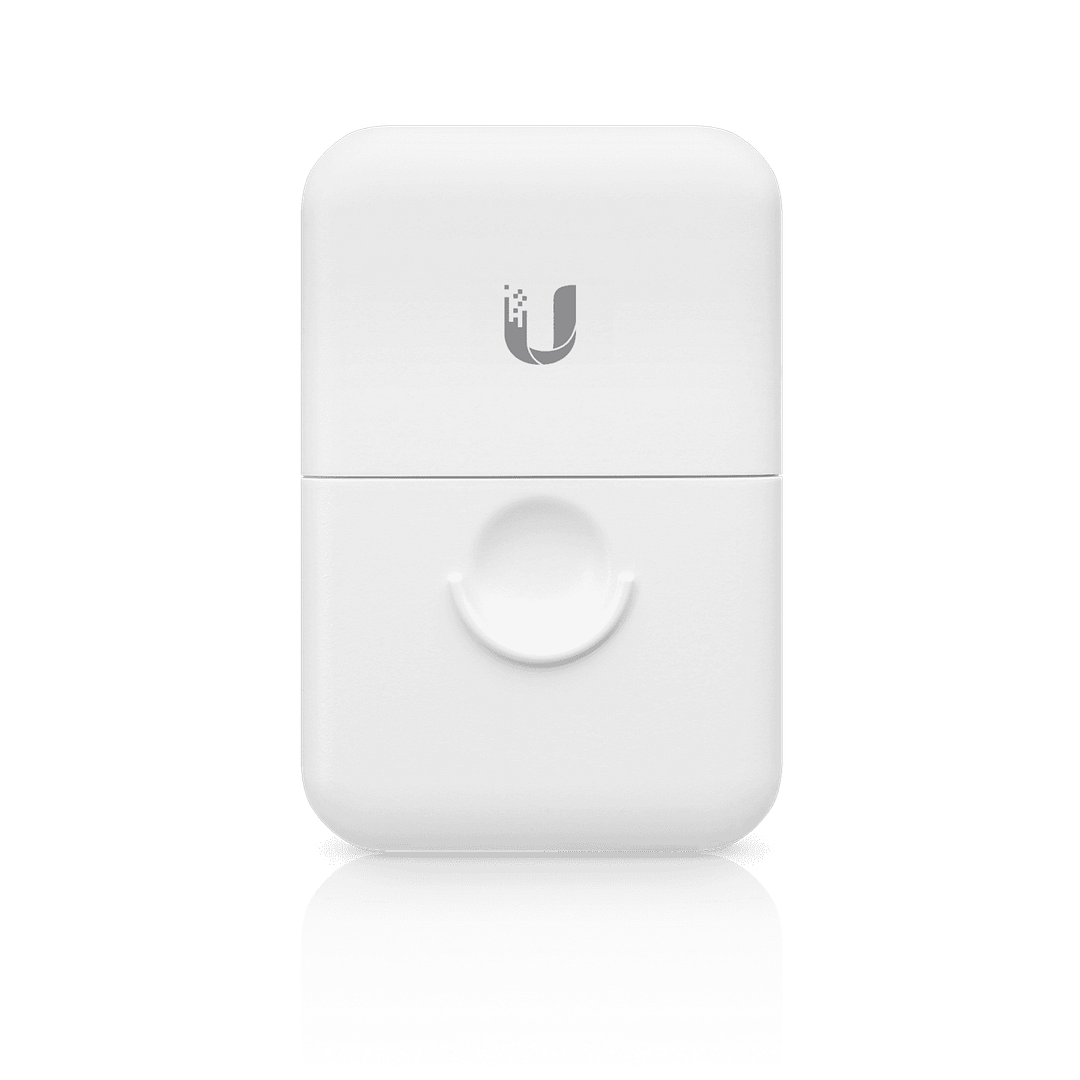

Description

Technical Specifications
Mechanical
Dimensions 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3″)
Weight 80 g (2.8 oz)
Weatherproofing IPX5
Hardware
Networking interface (2) RJ45 female connectors
ESD/EMP protection Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC spark-over voltage 90V @ 100V/s
Max. impulse spark-over voltage 700V @ 1kV/µs
Discharge Current 10kA+
Max. insulation resistance 1G ohm @ 50V
Max. capacitance 1.0 pF @ 1 MHz
Data line protection GbE
PoE support Yes
Shock and vibration certification ETSI300-019-1.4 Standard
Ambient operating temperature -30 to 65° C (-22 to 149° F)
Ambient operating humidity 10 to 90% noncondensing
