Technical Specifications

UA-Hub-DoorMechanical

Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)

Weight363 g (12.8 oz)

Enclosure material Polycarbonate

Mounting material Polycarbonate

Hardware

Networking interface (5) 10/100/1000 Base-T

Power methodPoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU

Max. power consumption Without PoE output: 30W
With PoE output: 50W

PoE input50V DC, 1A

PoE outputPoE passthrough, (4) PoE, 50V DC, total 20W

Button(1) Factory-reset

LEDsSystem: white/blue
Output relays: white

Digital inputRequest to exit/request to enter/remote release/door position sensor

Dry output relayLock: 30V DC, 1A
Aux: 30V DC, 1A

Powered output relayLock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A

Operating environmentIndoor use only

Ambient operating temperature 0 to 40° C (32 to 104° F)

Ambient operating humidity5 to 95% noncondensing

UL 294 levelDestructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 GradeGrade assignment: 1

CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision levelUA-Hub-Door002, V01

Wiring Information

Wiring gauge requirements (AWG)

Total length to device
Output load current at 12V DC

100mA
250mA
500mA
1A

6.1 m (20 ft)
22
22
22
18

15.2 m (50 ft)
22
22
22
18

30.5 m (100 ft)
22
22
18
18

UACC-Cable-DoorLockRelay (18 AWG) is recommended.

PoE cabling requirementsThe minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.

LEDs

PoE inSteady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware

PoE outOff: Not connected or no data link
Steady blue: Connected and data link on

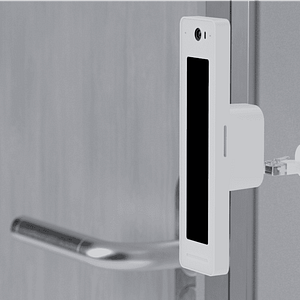

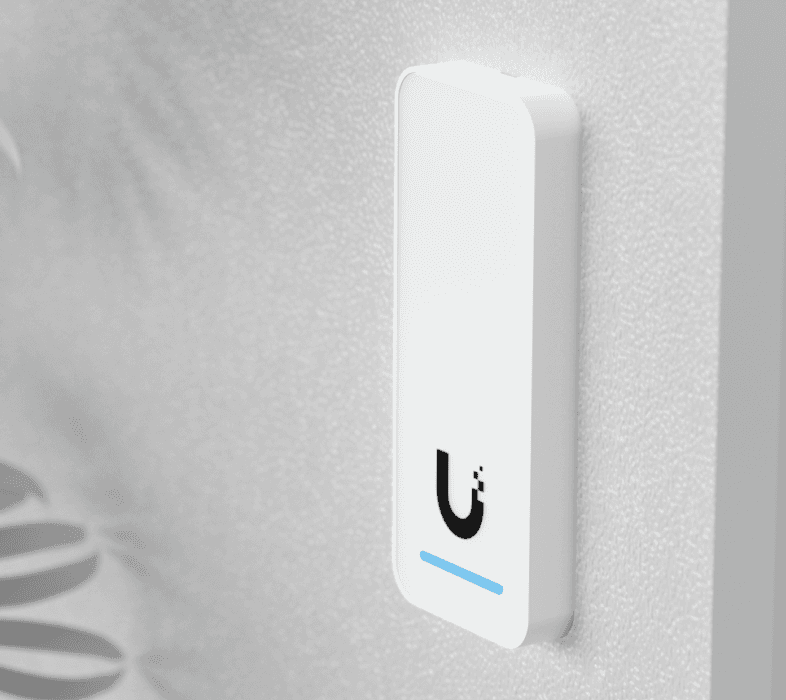

UA-G2Mechanical

Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)

Weight82 g (2.9 oz)

Enclosure materialPolycarbonate, glass

MountingIn wall, gang box

WeatherproofingIP55

Hardware

Networking interface(1) 10/100 MbE RJ45 port

ConnectivityBLE 4.1

Power methodPoEUL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range48V DC

Max. power consumption5W

ESD/EMP protectionAir: ±15kV, contact: ±8kV

SensorsProximity sensor

Speaker(1) 8 ohm, 0.7W

LEDsR/G/B/W

Button(1) Factory-reset

NFC frequency13.56 MHz

NFC read range< 30 mm NFC standardsISO 14443A, 14443B, 15693 NFC technologyNFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire Operating environmentOutdoor use Ambient operating temperature-30 to 45° C (-22 to 113° F) Ambient operating humidity5 to 90% noncondensing Software informationThe software version of a product can be checked at https://unifi.ui.com UL 294 levelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable. CAN/ULC-60839-11-1 GradeGrade assignment: I CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision levelUA-G2/UA-G2-Black, V02 LED SystemSteady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware Strobing red: Emergency lockdown UA-CardMechanical Dimensions 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03") Weight 5 g (0.18 oz) Format ISO 7810 ID-1 NFC frequency 13.56 MHz NFC technology ISO/IEC 14443 Type AMIFARE DESFireUniFi Access Proprietary Security Protocol
