Description

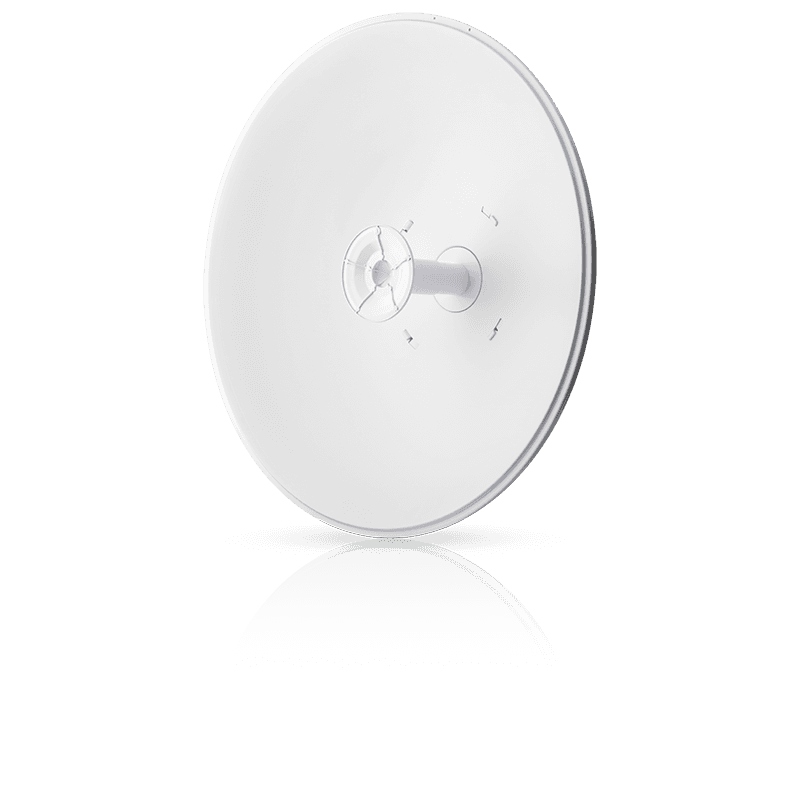

RD-5G30-LW
Dimensions 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)
Weight 7.4 kg (16.31 lb)
Frequency Range 5.1 – 5.9 GHz
Gain 30 dBi
HPOL Beamwidth 5.8° (3 dB)
VPOL Beamwidth 5.8° (3 dB)
F/B Ratio 30 dB
Max. VSWR 1.6:1
Wind Loading 790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
