Description

Technical Specifications
Mechanical

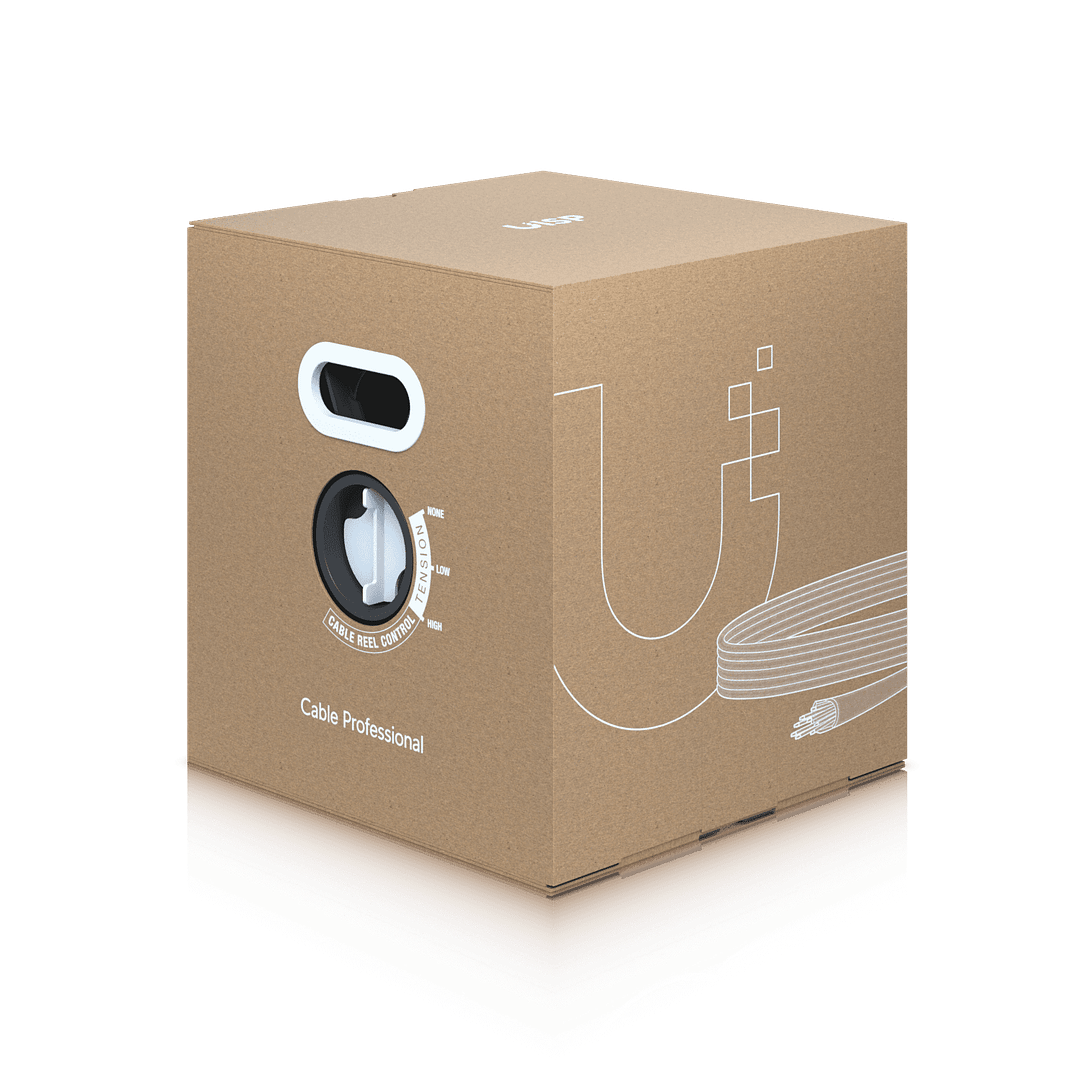

Box dimensions 330 x 330 x 340 mm (13 x 13 x 13.4″)
Box weight 12 kg (26.5 lb)
Cable length 305 m (1,000 ft)
Cable color Black
Cable type CAT5e, shielded
Ethernet support Up to 1 Gbps
Conductor wire gauge 24 AWG
Conductor Solid bare copper
Conductor diameter 0.500 ± 0.005 mm
Insulation type Solid polyethylene
Insulation thickness Avg. 0.26 mm
Min. 0.25 mm
Insulation diameter 1.04 ± 0.03 mm
Separation (Polyester wrapping) Thick: 0.025 mm
Extent: 20 mm
Anti-crosstalk divider None
Cable shield (Aluminum foil) Thick: 0.060 mm
Extent: 18 mm
ESD drain wire 0.4 CCS
Rip cord Yes
Jacket material Polyethylene
Jacket thickness Avg. 0.50 mm
Min. 0.46 mm
Jacket outer diameter 6.0 ± 0.30 mm
Jacket color Black
Storage temperature -30 to 75° C (-22 to 167° F)
Installation temperature -20 to 60° C (-4 to 140° F)
Ambient operating temperature -40 to 80° C (-40 to 176° F)
Standards ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
