Description

Technical Specifications

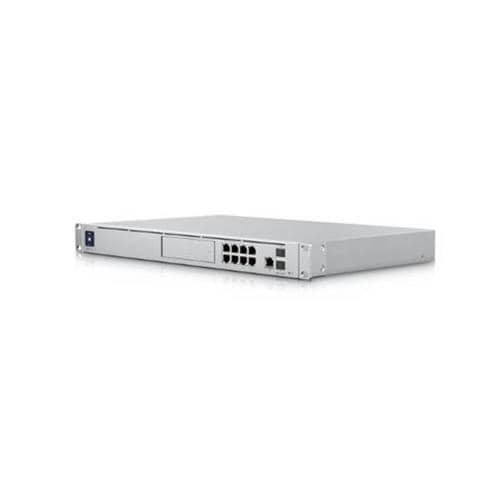

Mechanical

Dimensions442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)

Weight5 kg (10.9 lb)

Enclosure materialAluminium CNC, SGCC steel

Mount materialSGCC steel

Hardware

ProcessorQuad-core ARM® Cortex®-A57 at 1.7 GHz

System memory4 GB DDR4

On-board storage16 GB eMMC Integrated 128 GB SSD

Management interfaceEthernet Bluetooth

Networking interfaceLAN: (8) GbE RJ45 ports(1) 10G SFP+ portWAN: (1) 2.5 GbE RJ45 port(1) 10G SFP+ port

PoE interface(6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS throughput3.5 Gbps*
*Measured with iPerf3

Power method(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A

Power supplyAC/DC, internal, 240W

Supported voltage range100—240V AC

Max. power consumption 50W (Excluding PoE output)

PoE budget180W

Max. PoE wattage per port by PSEPoE: 15.4WPoE+: 30W

Voltage range PoE modePoE: 44—57VPoE+: 50—57V

ESD/EMP protectionAir: ± 15kV, contact: ± 8kV

LCM display(1) 1.3″ touchscreen

ButtonFactory reset

Ambient operating temperature-10 to 40° C (14 to 104° F)

Ambient operating humidity5 to 95% noncondensing

CertificationsCE, FCC, IC

Gateway Features

Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation securityApplication-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networkingLicense-free SD-WANWireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

LEDs

EthernetWhite: link/activity

SFP+White: link/activity

HDDWhite: disk activityAmber: disk error

RPSBlue: ready
