Description

Technical Specifications
Mechanical
Dimensions 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3″)
Weight 884 g (1.9 lb)
Enclosure material Polycarbonate, aluminum
Mount material Aluminum
Hardware
Networking interface (1) Data in: 2.5 GbE RJ45 port
(4) Data out: GbE RJ45 ports
Management interface Ethernet
Bluetooth
PoE interface (1) PoE+ input
(1) PoE output
Power method PoE+
PoE++ (Required for PoE output)
Power supply UniFi PoE switch
Max. power consumption 21W (Excluding PoE output)
Max. PoE wattage per port by PSE 15.4W
Supported voltage range 44—57V DC
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
5.8 dBi
5.8 dBi
LED White/blue
Button Factory reset

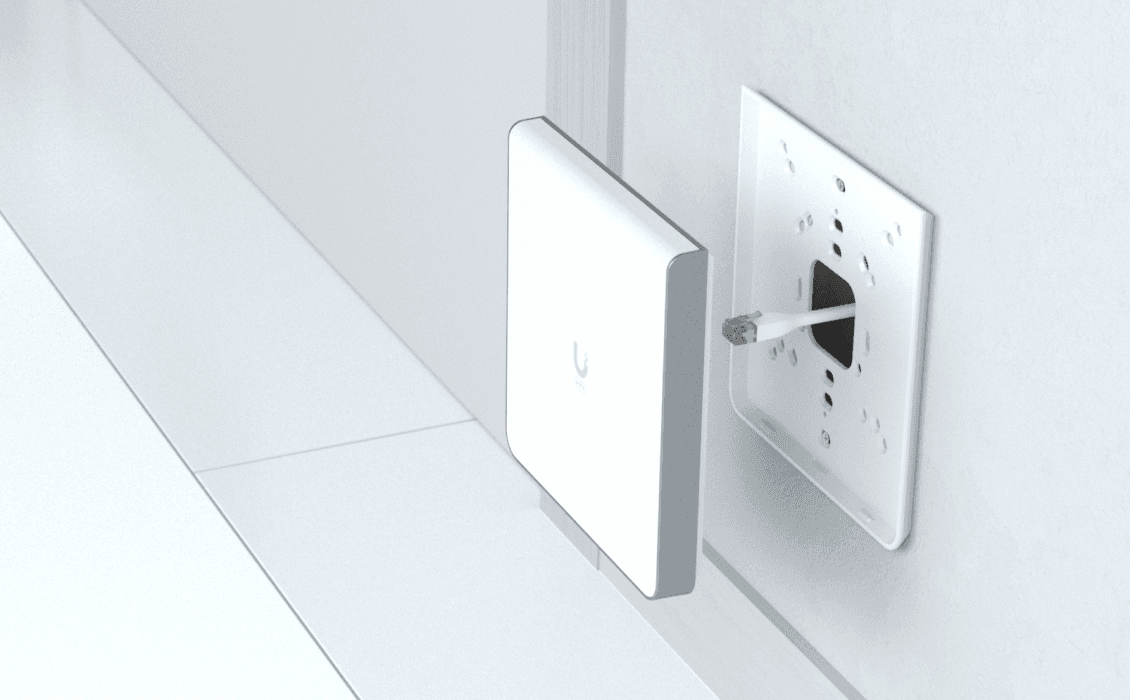

Mounting Wall (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6/6E)
Wireless security protocols WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 600+
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31 , HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 7.2.85 and later
